K8S Ingress IP 白名单设置

问题

怎么设置Ingress 来实现只允许特定的IP访问? 也就是怎么设置Ingress IP白名单?

解决方法

可以通过设置Ingress的 annotation 中的 nginx.ingress.kubernetes.io/whitelist-source-range 的方式来实现.

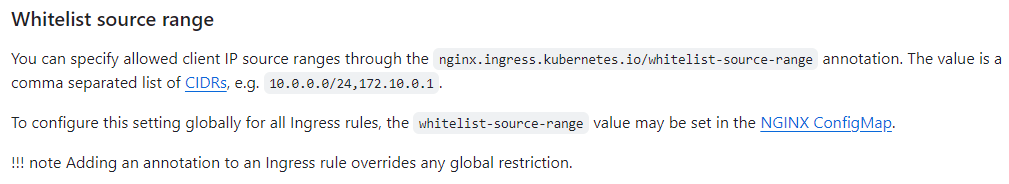

如下所示,官方文档说明

测试方式

可以使用下面的Yaml 来部署nginx的方式来测试.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-deployment-test
spec:
  selector:
    matchLabels:
      app: nginx
  replicas: 1
  template:
    metadata:
      labels:
        app: nginx
    spec:
      containers:
      - name: nginx
        image: nginx:1.14.2
        ports:
        - name: http-web-svc
          containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service-test
spec:
  type: ClusterIP
  selector:
    app: nginx
  ports:
  - name: name-of-service-port
    protocol: TCP
    port: 81
    targetPort: http-web-svc
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-test
  labels:
    app: nginx
  annotations:
    ingress.kubernetes.io/proxy-body-size: "10m"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
    nginx.ingress.kubernetes.io/proxy-connect-timeout: "300"
    nginx.ingress.kubernetes.io/proxy-send-timeout: "300"
    nginx.ingress.kubernetes.io/proxy-read-timeout: "300"
    nginx.ingress.kubernetes.io/whitelist-source-range: "118.195.178.154"
spec:
  ingressClassName: nginx
  rules:
  - host: nginx-test.xxxxxx.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: nginx-service
            port:
              number: 81

注意代码中的设置nginx.ingress.kubernetes.io/whitelist-source-range: "118.195.178.154" 这样只有从主机"118.195.178.154" 上才可以访问nginx服务.

如下所示测试结果:

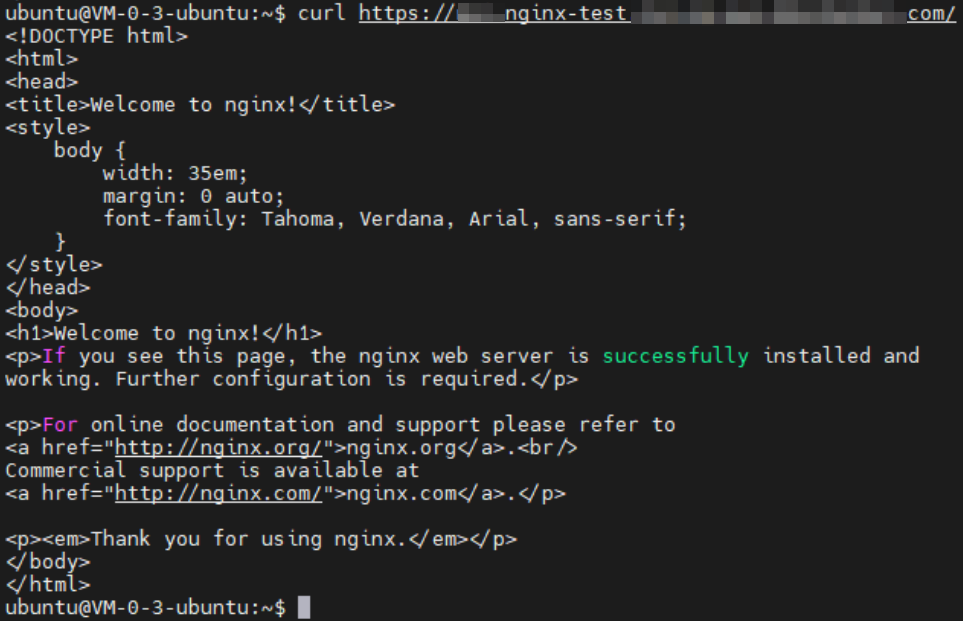

在"118.195.178.154" 上是可以使用curl来访问nginx服务的

从其它主机上访问的话就会出现 403 Forbidden 的错误信息

参考文档

ingress-nginx/docs/user-guide/nginx-configuration/annotations.md at main · kubernetes/ingress-nginx · GitHub
